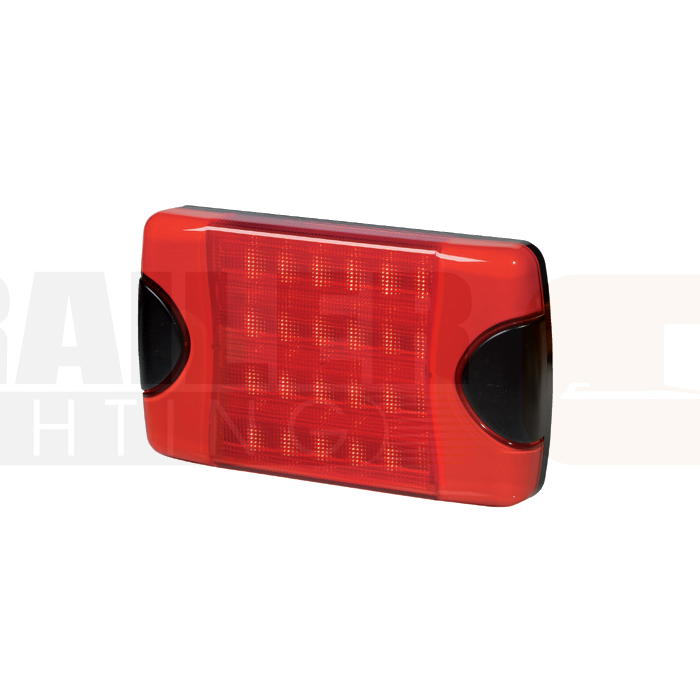

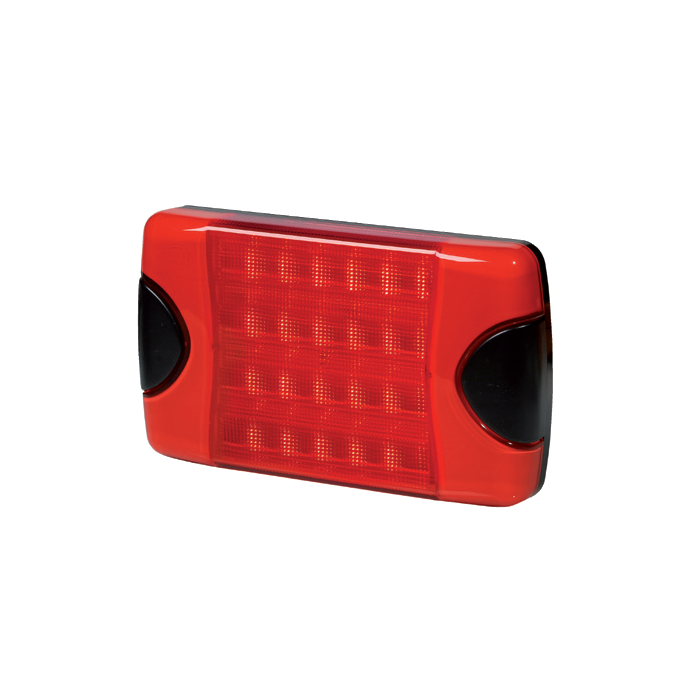

Hella 2330H DuraLed Horizontal Mount Wide Angle Stop / Rear Position Lamp

$259.41
In stock
SKU
2330H
Hella 2330H DuraLed Horizontal Mount Wide Angle Stop / Rear Position Lamp is available to buy in increments of 1

Hella 2330H DuraLed Horizontal Mount Wide Angle Stop / Rear Position Lamp

Hella 2330H DuraLed Horizontal Mount Wide Angle Stop / Rear Position Lamp

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Night light function
Rear position lamp can be illuminated independently from remaining marker lamps for low power consumption.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.



2330H

DuraLed Wide Angle Stop / Rear Position Lamp - Horizontal Mount

Description

LED Stop / Rear Position Lamp featuring Enhanced Definition Technology (EDT) for the stop signal function and acrylic lens with UWVO (Ultra Wide Visibility Optics) for significantly improved side visibility. Slimline design for increased protection against damage. Fully sealed against dust and moisture.



Voltage



Multivolt (9-33V DC)



Wattage



Stop - 6W
Rear Position - 2.5W



Mounting



Surface mount (screw caps and mounting bushes included). Designed to be mounted horizontally.



Protection



Reverse Polarity and 1.5kW Transient Voltage Suppressor (TVS). Fully sealed against dust and moisture to IP6K6 and IP6K7.



Cable Length



2.5 metres



ADR No



49/00
49/00



ADR Function



Stop Lamp
Rear Position Lamp



CRN



36428
36426


Accessories & Spare Parts
9.2330.08 Screw cap and boss kit
9.2330.10 Red screw cap (pack of 4)
9.2330.11 White screw cap (pack of 4)
9.2330.12 Blue screw cap (pack of 4)
9.2330.13 Green screw cap (pack of 4)
9.2330.14 Yellow screw cap (pack of 4)
9.2330.15 Black screw cap (pack of 4)
9.2330.16 Amber screw cap (pack of 4)
9.2330.17 Screw boss (pack of 4)
More Information
Manufacturer Hella
Hella SAP No. 959.060-351
Barcode 9416325175049
Wattage Stop: 6W, Rear position: 2.5W, Night: 2.5W
Voltages 9 to 33 volts
